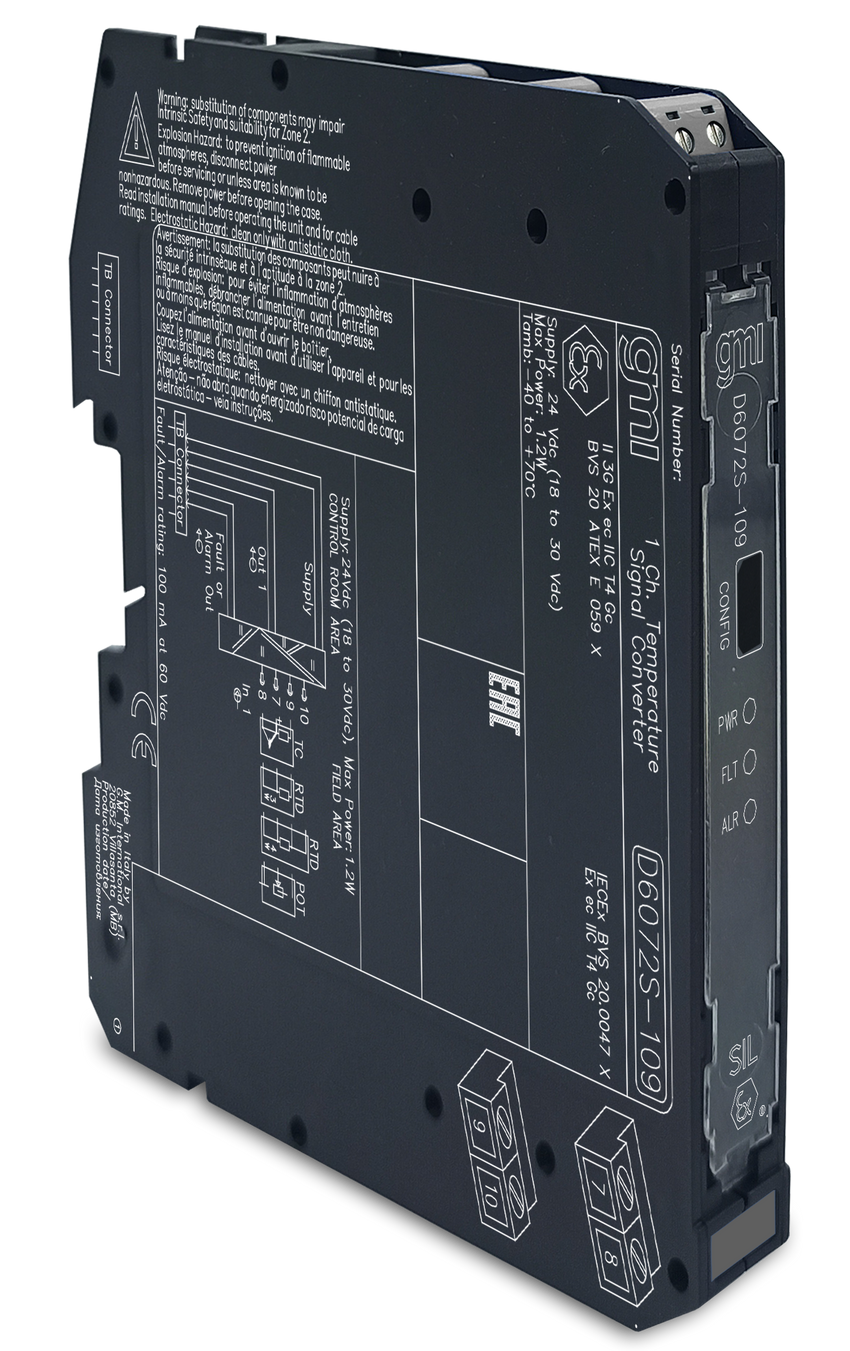

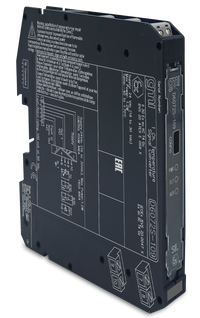

D6072S-109

The Sink-Out Temperature Converter D6072-109 accepts a low level
dc signal from millivolt, thermocouple or resistance/RTD or
transmitting potentiometer sensor and converts, with isolation, the
signal to drive a load, suitable for applications requiring SIL 2 level in
safety related systems for high risk industries. Output signal can be
direct or reverse. Modbus RTU RS-485 output is available on Bus
connector. Cold junction compensation can be programmed as
Internal: provided by an internal PT1000 sensor; Fixed: to a usercustomizable
temperature value; External remote: ext. RTD placed
away, on a support terminal board; External local: ext. RTD placed
close to the module terminal block; Other: connecting compensation
RTD to one of the two ch. For D6072D-109 module: duplicator
function provides two independent outputs from one single input.
Output function can be configured as: average, subtractor, low/high
or redundancy selector. Modules are provided with alarm function,
which is available via solid state contact output.

• SIL 2 / SC 3
• Installation in Zone 2
• Installation in Div. 2
• mV, TC, 2/3/4wire res./RTD or potentiometer input
• Duplication/inversion/scaling/custom output
• Selectable CJC: internal PT1000, external RTD or fixed
• Burnout/internal/cjc/in sensor fault monitor
• Alarm output with user-settable trip points
• Modbus RTU RS-485 for monitor & configuration
• Fully programmable operating parameters
