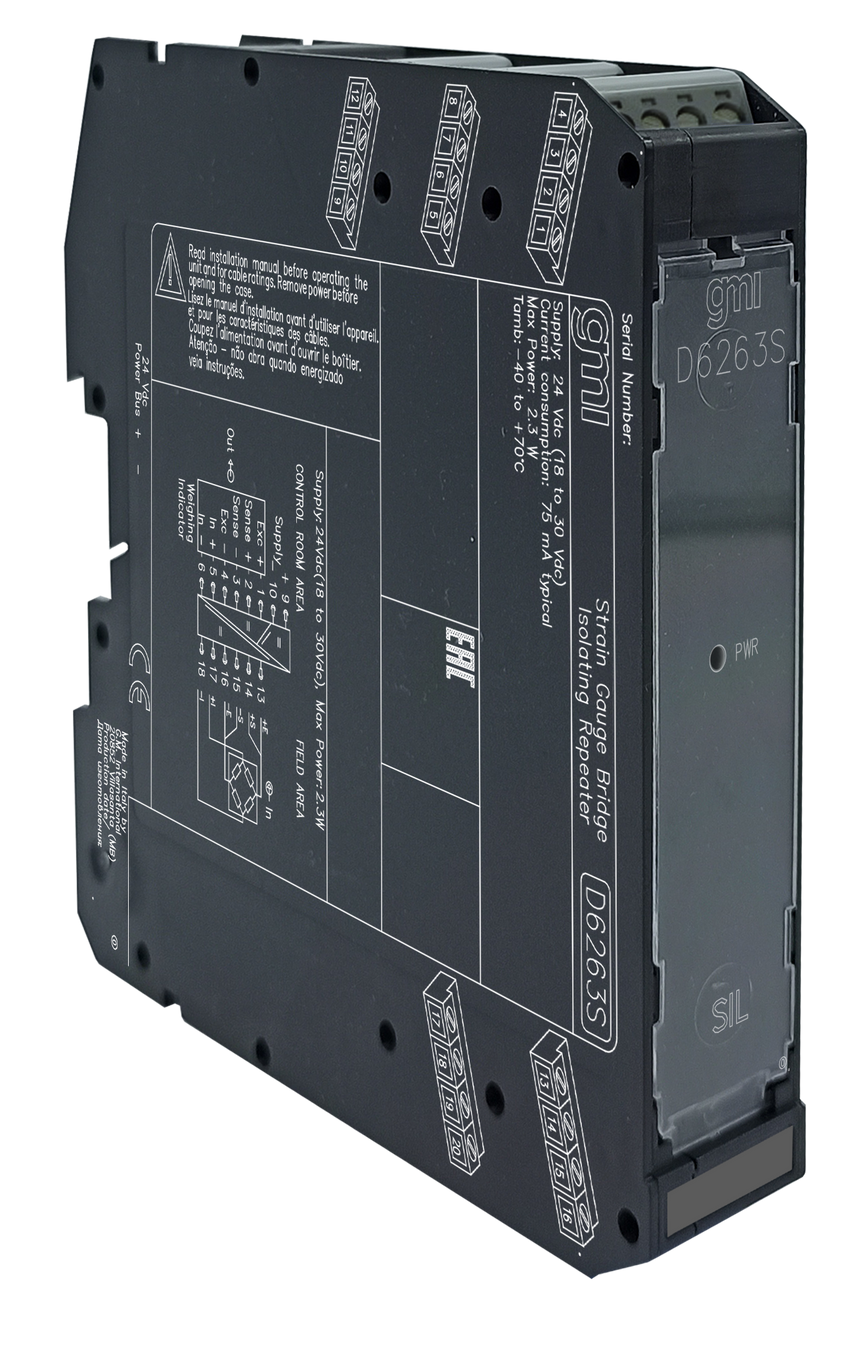

The Load Cell/Strain Gauge Bridge Repeater D6263 module is a unit
suitable for applications requiring SIL 2 level in safety related
systems for high risk industries. The unit acts as a transparent
galvanic isolated interface installed between a weighing indicator and
a load cell (or group of load cells); it appears at the terminals of the
indicator as a single load cell equivalent to the one in the field. It
provides a fully floating power supply voltage with remote sensing
capability to load cell and repeats, while isolating, the mV signal
output to drive a load depending on the host system reference
voltage. Up to four 350 Ω load cells, or five 450 Ω load cells, or ten
1000 Ω load cells can be connected in parallel. The Voltage
reference is set as an external supply.
